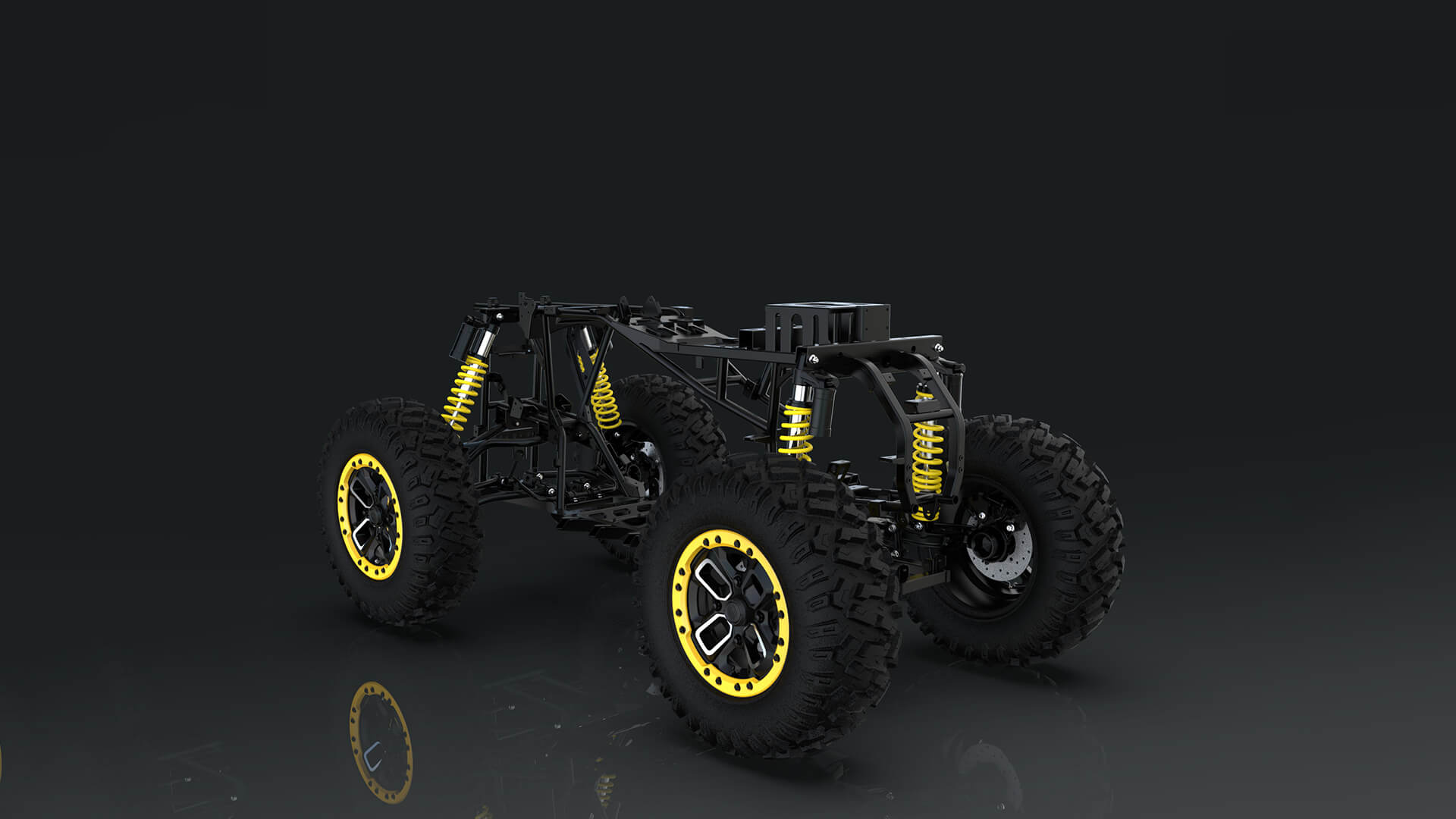

Front Suspension
|
Dual A-Arm With Sway Bar, Travel 230mm
|
|
Front Shocks
|
Adjustable Gas Shock Absorber
|
|
Rear Suspension
|
Independent Torsional Trailing Arm, Travel 250mm
|
|
Rear Shocks
|
Adjustable Gas Shock Absorber
|
|
Front Tires
|
25×8×12in & 26×9×14in
|
|
Rear Tires
|
25×10×12in & 26×11×14in
|
|
Wheels
|
12in. Aluminum & 14in. Aluminum
|
|
Brakes
|
Dual 220mm Disc Brakes
|
|

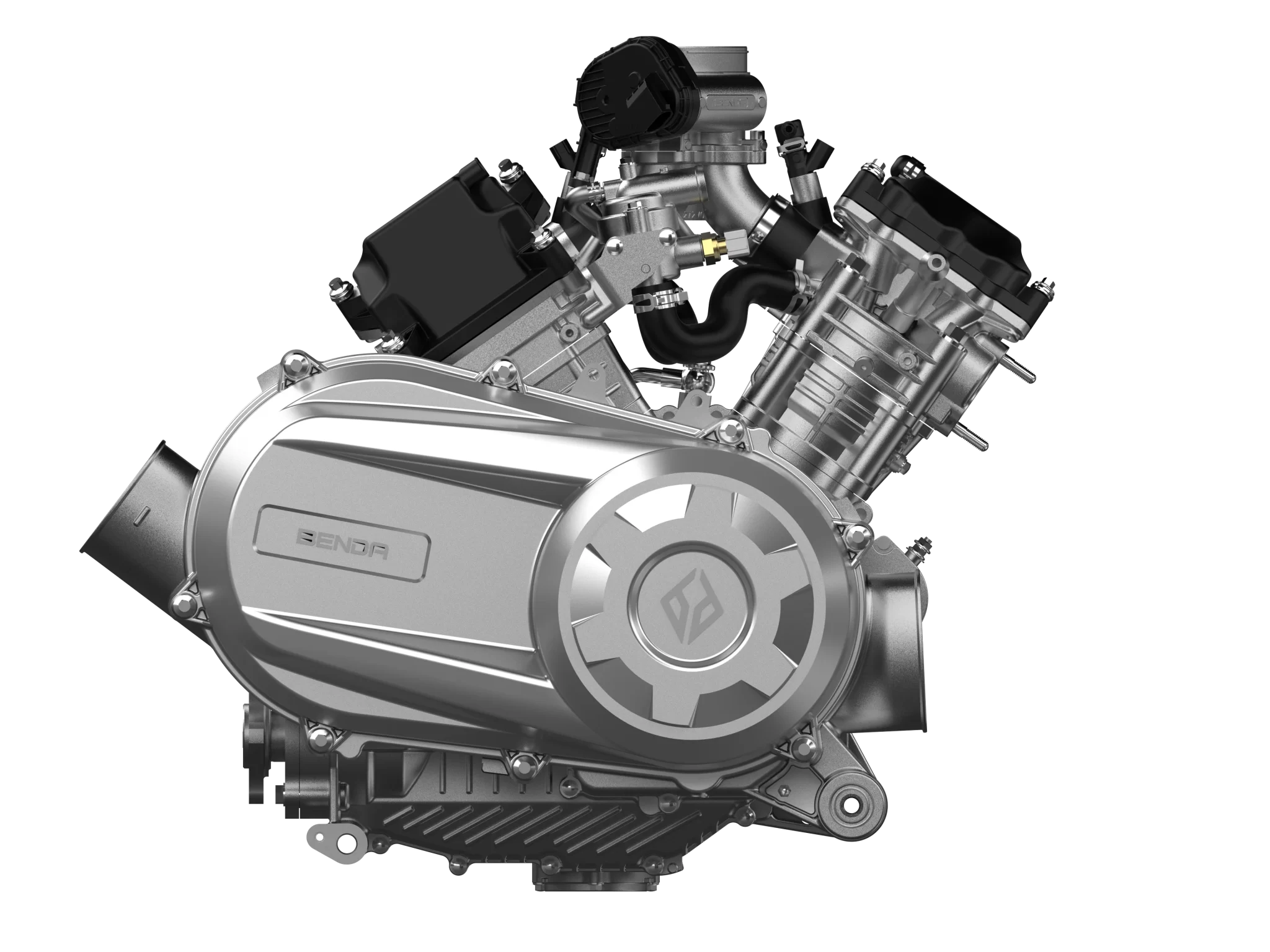

Engine Type
|
4-Stroke SOHC V-Twin Cylinder
|
|
Displacement
|
500cc
|
|
Horsepower
|
48hp
|
|
Max. Torque (N.m/r/min)
|
46N.m/5500rpm
|
|

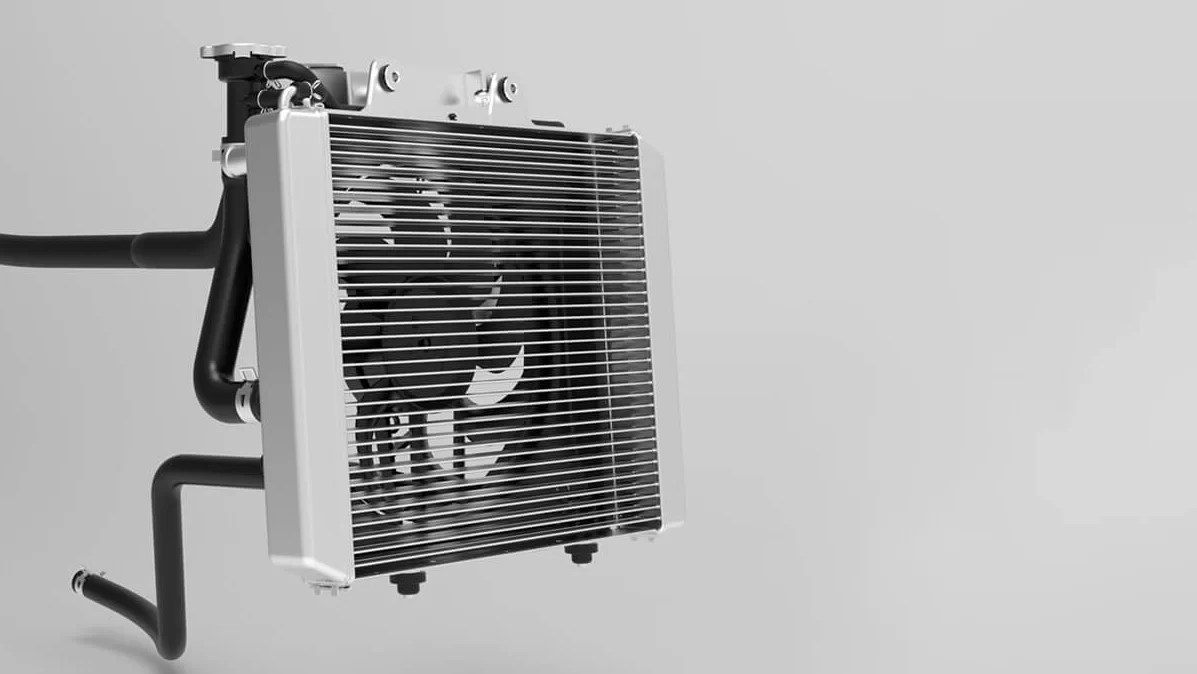

Fuel System/Cooling
|
EFI/Liquid
|
|
Transmission
|
CVT L/H/N/R/P
|
|
Drive Train
|
Selectable 2WD/4WD With Diff-Lock
|
|
L×W×H
|
2150×1250×1300mm
|
|
Wheelbase
|
1300mm
|
|
Ground Clearance
|
305mm
|
|
Estimated Dry Weight
|
415kg
|
|
Towing Capacity
|
697kg
|
|
Fuel Tank Capacity
|
30L
|
|
Seat Height
|
95cm
|
